Open-Die Forging Presses

Push-down, moving-cylinder and pull-down hydraulic press series for hot open-die forging.

Open-Die Forging Presses

Functions and application.

SDT hydraulic forging presses form heated ingots and billets through upsetting, drawing out, punching, ring expansion and cutting. Tooling is selected for the required bars, discs, rings and thick plate forgings.

Push-down, moving-cylinder and pull-down presses are distinct series with their own specification references. Press force, stroke, daylight, tooling and handling interfaces are matched to the forming task and installation conditions.

  • Push-down

    Two-column and four-column arrangements for the selected working space and forming duty.

  • Moving-cylinder

    An independent series with separate force, stroke and working-space specifications.

  • Pull-down

    An independent press type with its own tooling, working-space and installation references.

Technical overview.

Push-down series reference
20 / 25 / 31.5 / 45 / 63 / 80 MN
Moving-cylinder series reference
3.15 / 5 / 6.3 / 8 / 10 / 12.5 / 16 / 20 MN
Pull-down series reference
8 / 12.5 / 16 / 20 MN
Main specification factors
Force, stroke, daylight, column clearance, table dimensions and tooling

Series values are specification references, not a statement that every size has been delivered. SDT confirms the selected model and numerical data for the project.

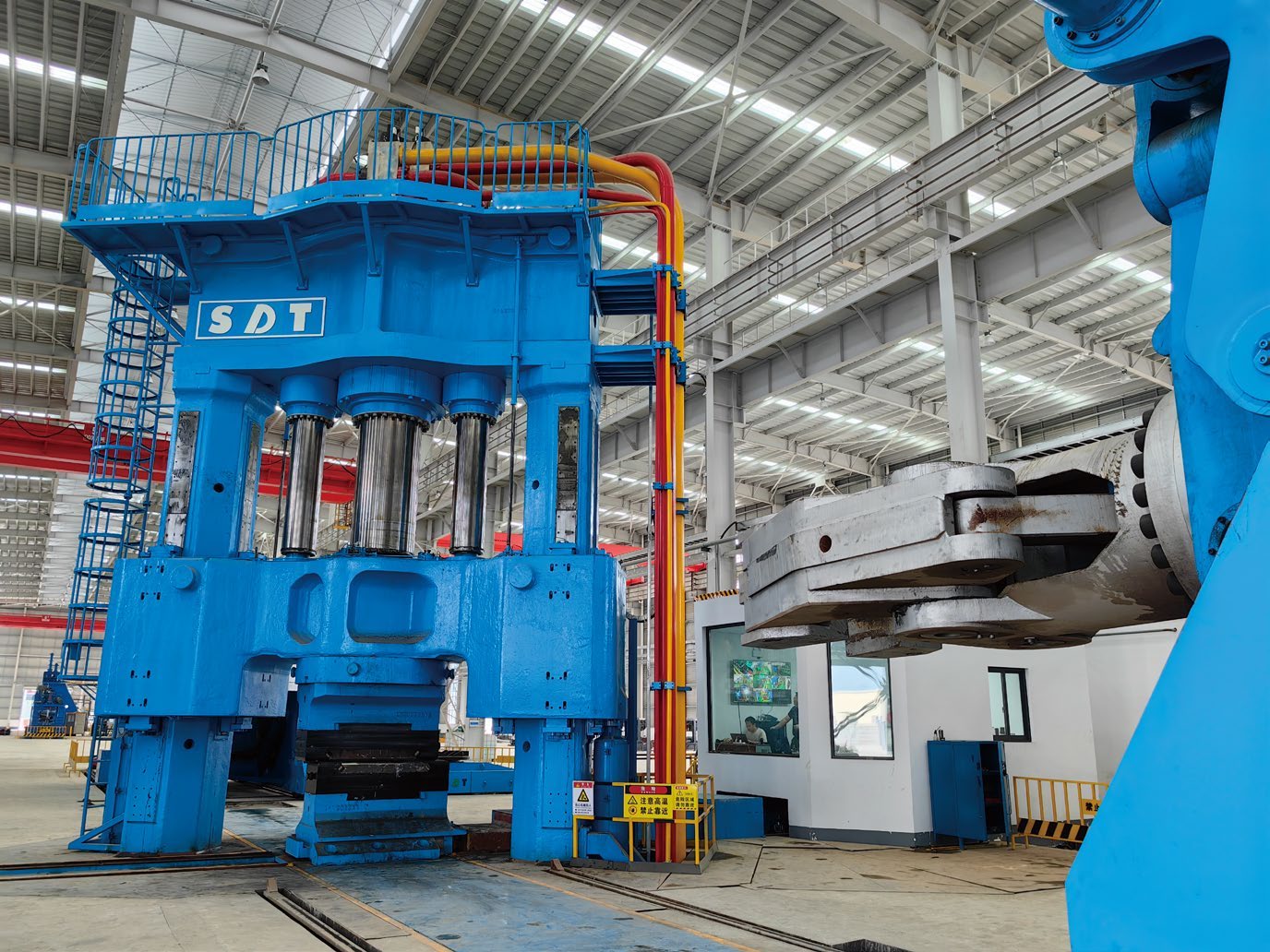

SDT forging press and workpiece-handling equipment.
SDT forging press and workpiece-handling equipment.

Three press products shaped by forming and installation conditions.

SDT organizes its open-die forging press offer into Push-Down, Moving-Cylinder and Pull-Down products. Each product retains project-defined force, stroke, daylight and installation data until engineering review is complete.

Three distinct press products within one family.

Push-down, moving-cylinder and pull-down presses suit different forming and installation requirements. Force, stroke and daylight are specified for each project.

Project inputs and application context.

Define the forming task, building and foundation conditions.

LoadForging material, dimensions and forming task
ScopeForce, stroke, daylight and working-space requirements
InterfaceBuilding height and foundation conditions
SiteManipulator, tooling and control interfaces

Discuss the equipment around your real production conditions.

Share an RFQ, drawing, layout or short description. SDT will coordinate the next technical discussion.
